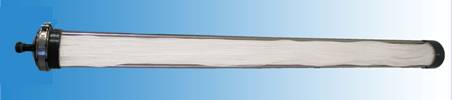

Product name:Series column type submerged hollow fiber MBR membrane modules
Product specification:MBR-0660、MBR-0680
Product information:

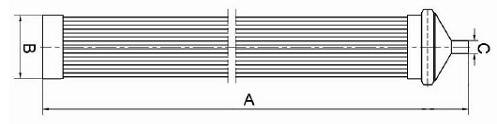

1. Dimension of submerged membrane modules
2. Specification of series submerged hollow fiber membrane modules
3. Performance of series submerged hollow fiber membrane modules
4.Operating parameters of series submerged hollow fiber membrane modules
| size Type | A | B | C |
| MBR-0660 | 1680 | 160 | DN32 |
| MBR-0680 | 2150 | 160 | DN32 |
2. Specification of series submerged hollow fiber membrane modules
| Type | MBR-0660 | MBR-0680 | |
| Dimension (mm) | Φ160×1640 | Φ160×2150 | |
| Membrane material | PVDF, H-PES | ||
| Pore size | MWCO 150000，0.1μm | ||
| Membrane area(m2) | Inside-out，outside - in | ||
| Pore size | 15 | 20 | |
| Housing material | UPVC | ||
| Potting material | epoxy resin / polyurethane | ||
| Outlet size (mm) | DN32 | DN32 | |
3. Performance of series submerged hollow fiber membrane modules
| Design filtrate rate(m3/d) | ≥5.4 | ≥7.2 |
| Permeate turbidity | <0.5NTU | |
Permeate SS |
＜1mg/L | |
| SDI | ＜3 | |
4.Operating parameters of series submerged hollow fiber membrane modules
| Run mode | Suction |
| Controlling mode | Constant pressure / constant flow |
| Operating pressure | -0.01~-0.04 (MPa) |
| Maximum backwash pressure | 0.20MPa |
Maximum operating temperature |
50 ℃ |
pH range |
2~10 |
MLSS |
5000～15000 mg／L |
Oil & Grease |
Oil content(n-Hex) ≤50 mg／L； Mineral oil(n-Hex) <5 mg／L |
